1 Watt LED, mounted on heat-sinking aluminum PCB. Operates with dual-intensity for run/brake or run/turn applications. Requires Hyper-X LED Driver. Top of class intensity for high-power LEDs. 1-Year Warranty & Satisfaction Guarantee. Overview The Hyper-X LED Module is a High-Power 1 Watt LED module that produces an incredible amount of light. This module...

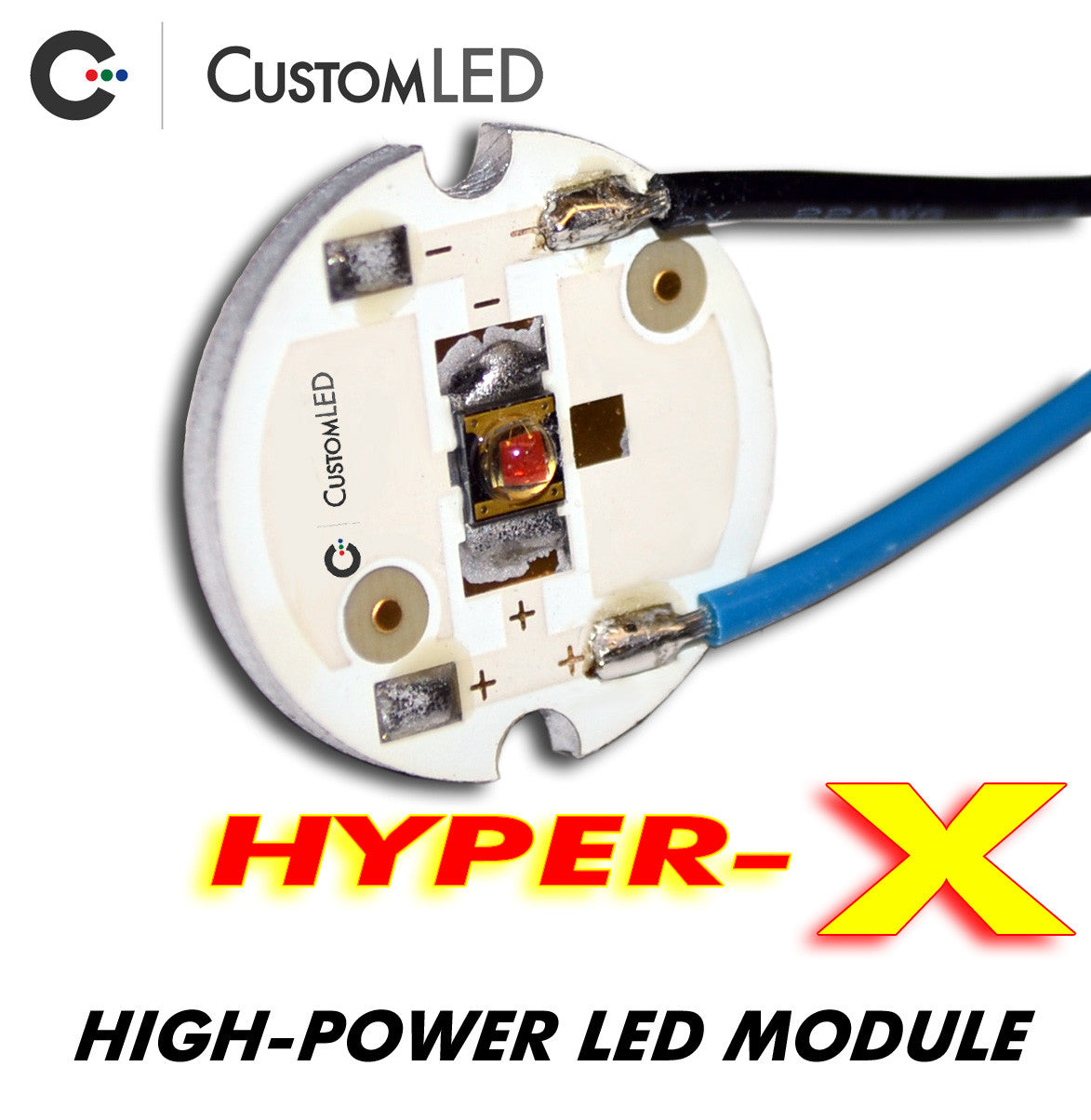

The Hyper-X LED Module is a High-Power 1 Watt LED module that produces an incredible amount of light. This module is designed to operate in conjunction with the Hyper-X LED Driver to provide dual-intensity (3-wire) operation of the LED.
They are currently available in: Red, Amber, White and Blue for a variety of applications.

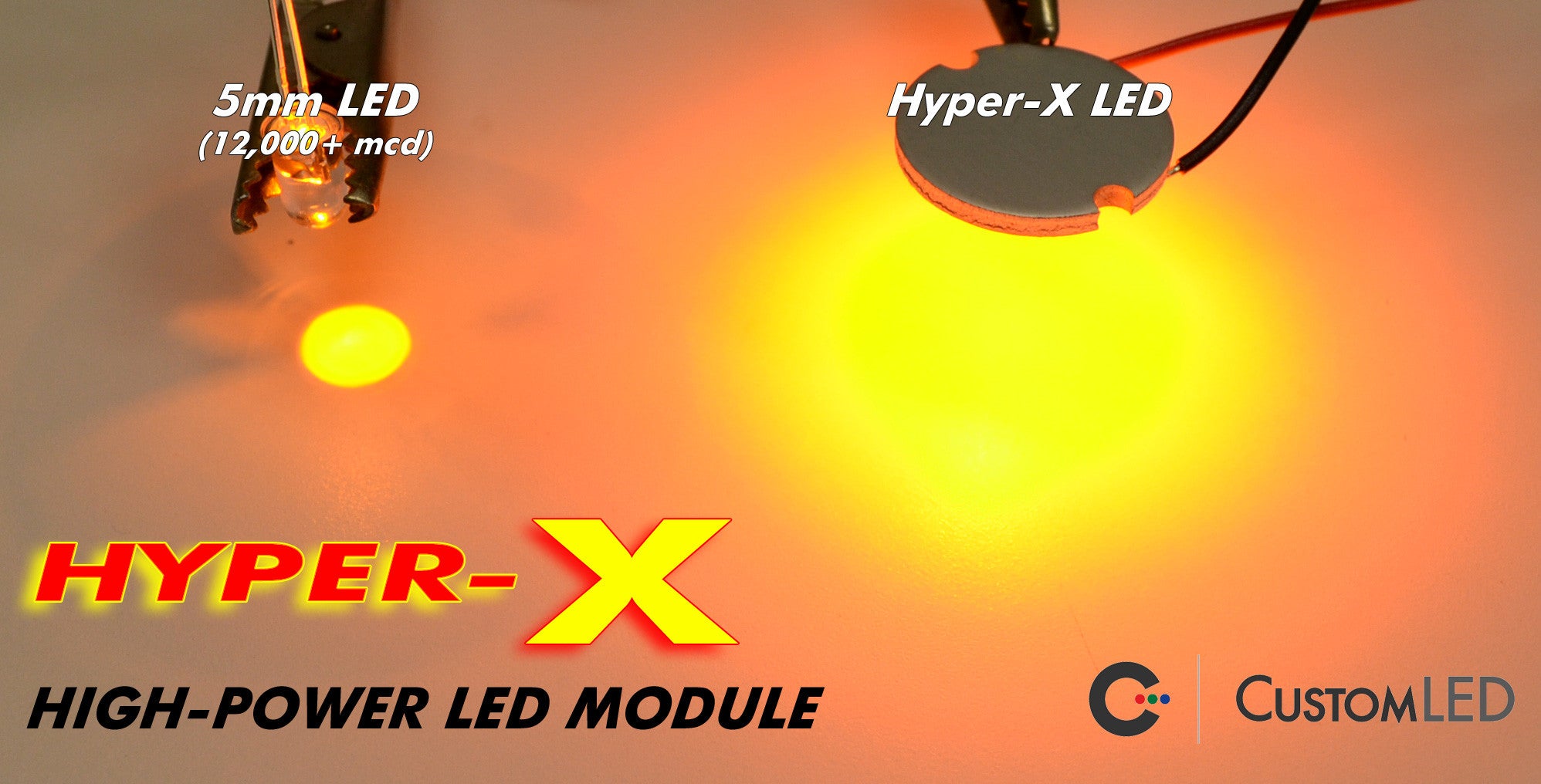

Measuring only 20mm (0.78") in diameter, its about the size of a Nickel, and puts out as much light as a 10W bulb, while only consuming 1W of power. This product is extremely versatile for custom applications where high-intensities or small sizes are required. Retrofitting existing housings and enclosures with this LED module is as simple as gluing it in place. For more secure installations, the two notches can be used to center mounting screws.

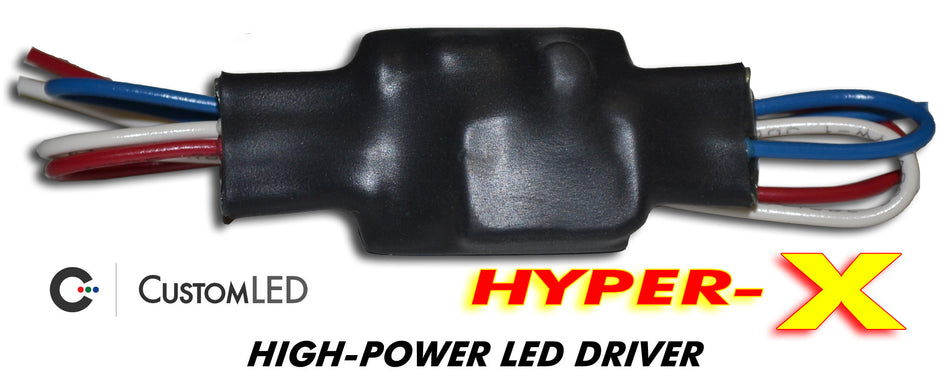

Up to three red or amber Hyper-X LED Modules can be run off of a single Hyper-X LED Driver, and up to two white or blue Hyper-X LED Modules can be run off of a single Hyper-X LED Driver! The Custom LED Hyper-X LED Drivers come with detailed wiring instructions.
The modules are not waterproof and are intended to be mounted inside of a suitable enclosure.
Specifications
LED Wattage class: 1 Watt
Size: 0.78" Diameter, 0.15" Thick (with wires)
Current draw: <350mA (bright)
Waterproof: NO
Viewing Angle: 120 Degrees
Blue Intensity: 12~20 Lumens, 465~475 nm
Red Intensity: 45~70 Lumens, 624 nm
White Intensity: 114~138 Lumens, 6000K
Amber Intensity: 45~70 Lumens, 598 nm
Installation
Installation of the Hyper-X LED Driver is as follows:
Click icon to download. Adobe Acrobat Reader is required to view this file. If you are having problems viewing the file, please download the free software here.
Recommended Accessories
These accessories are recommended specifically for the Hyper-X High-Power LED Modules based on wiring compatibility, related functionality, and common upgrade options. Click any item to learn more.
