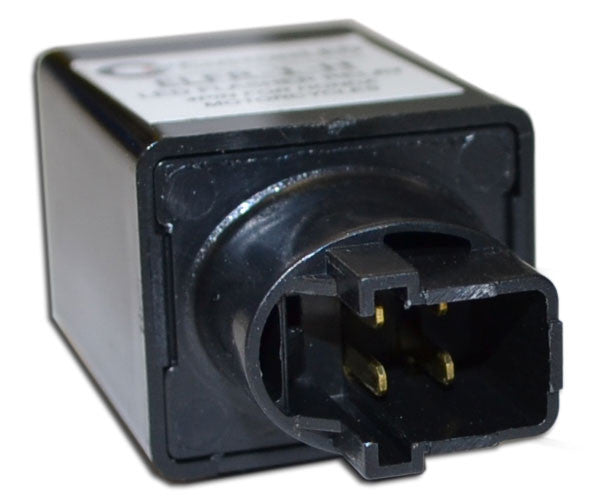

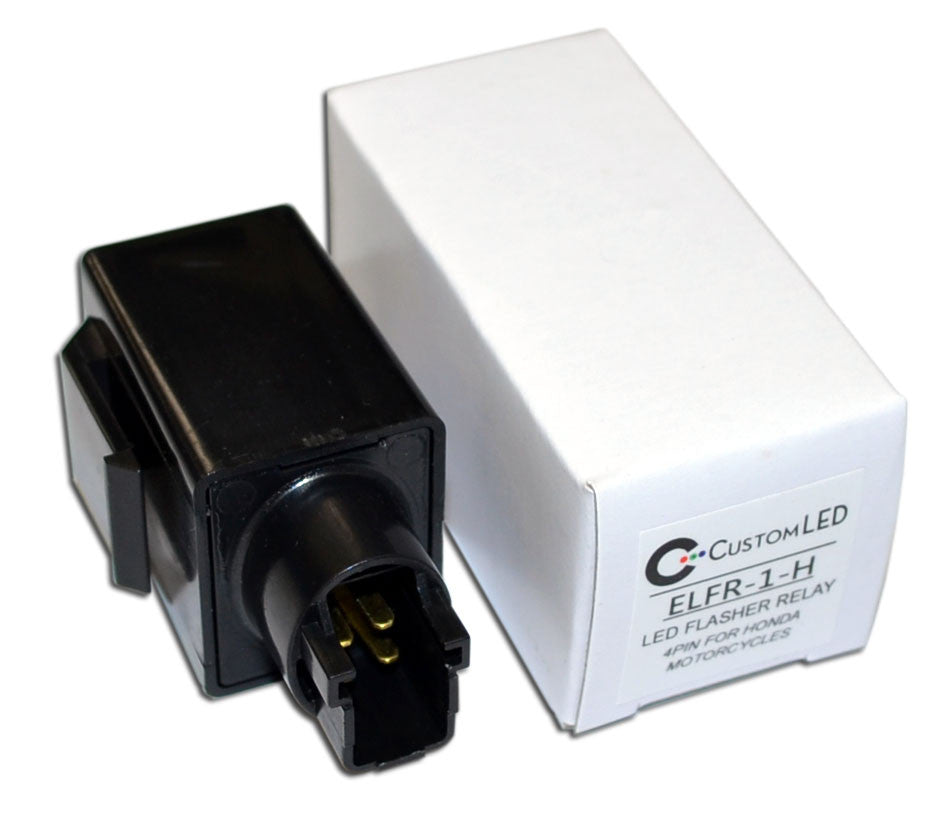

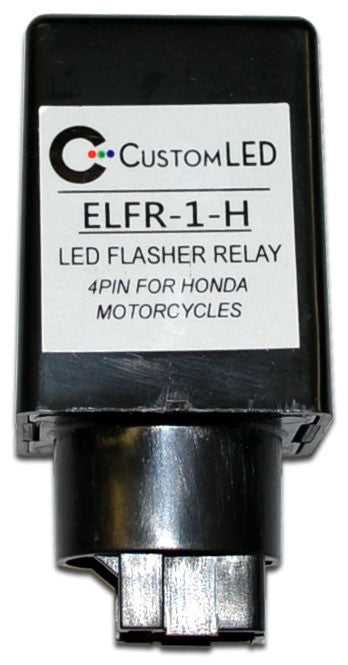

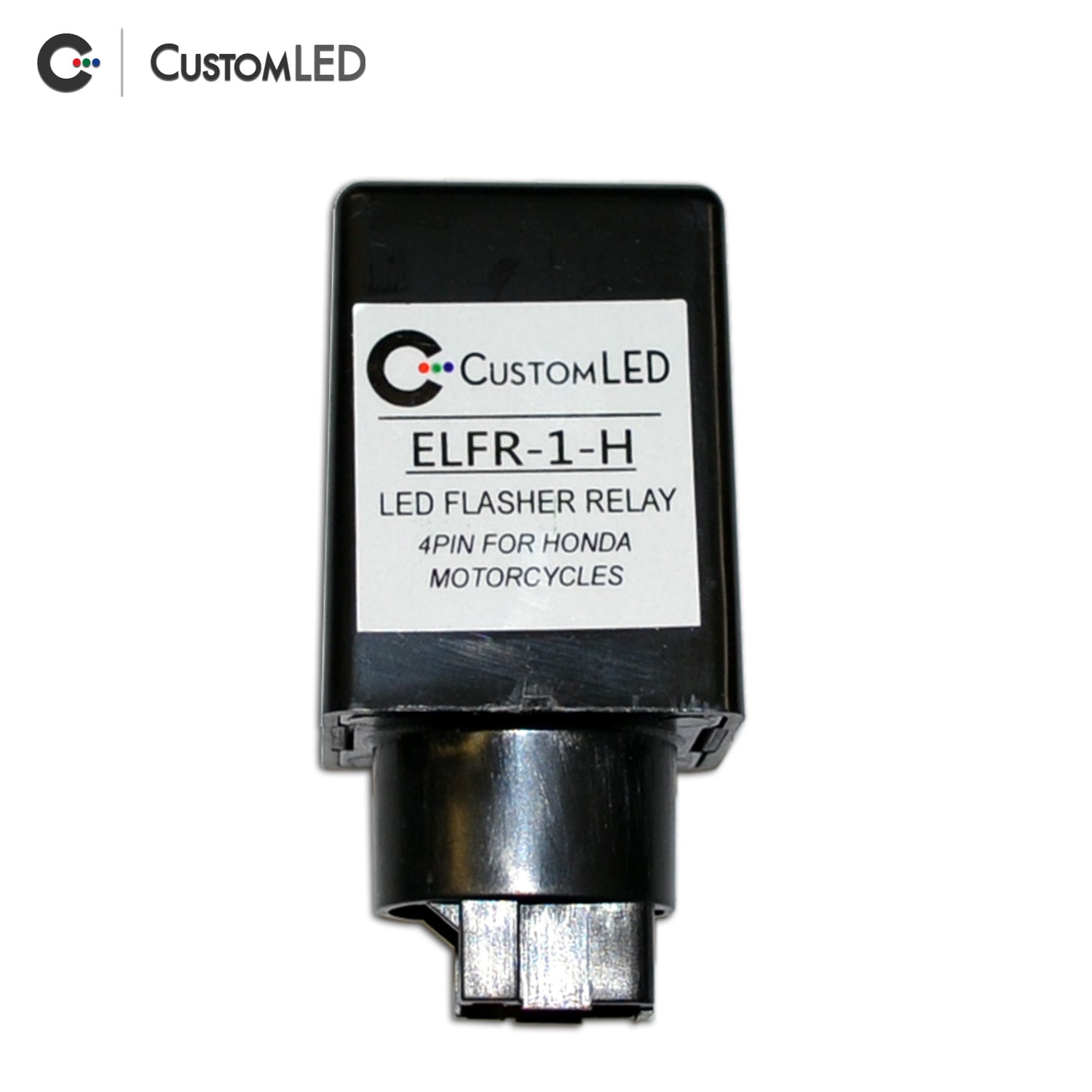

ELFR-1-H Electronic LED Flasher Relay 4-Pin Honda

Now you can finally fix the flash rate on your Honda motorcycle with our unique Plug And Play solution!  That's right, our Electronic LED Flasher relay directly replaces the stock flasher relay on compatible Honda motorcycles by plugging directly into the harness in place of the OEM flasher relay.

The ELFR-1-H is designed for compatible Honda applications with the matching OEM flasher relay connector. It restores the normal blink rate on compatible motorcycles with stock blinkers, LED blinkers, or any combination of both.

Use our Motorcycle LED Flasher Relay Compatibility Guide to confirm whether the ELFR-1-H is the correct Custom LED relay for your motorcycle before ordering.

This unit is guaranteed to operate at the normal DOT blink rate for compatible motorcycles with stock blinkers, LED blinkers, or any combination of both, provided the total load on the system is within 0.05A to 10A (0.6 Watts to 120 Watts!) - which basically covers the majority of blinker products on the market.

See the Installation Tab for more important details.

Your motorcycle must have a rectified standard 12VDC system for this flasher relay to work (most bikes are 12VDC).

• Minimum Rated Current: 0.05A
• Maximum Rated Current: 10A
• Rated Voltage: 12VDC
• Flash Rate: Constant
• Size: 1.2" x 1.77" x 0.74"

ELFR-1-H Compatibility

Use our Motorcycle LED Flasher Relay Compatibility Guide to confirm the correct Custom LED relay before ordering. The guide includes compatible motorcycles, recommended Custom LED relay model, OEM relay part numbers or relay body markings when available, and important fitment notes.

Important: This guide is intended for U.S.-spec applications unless otherwise noted. Non-U.S. models, previous owner wiring changes, and mid-year production changes may differ. When in doubt, compare your motorcycle's original flasher relay connector before ordering.

If your motorcycle is not listed for the ELFR-1-H, do not assume this relay will fit. Use the compatibility guide to select the correct Custom LED relay, or use Custom LED Universal Load Equalizers along with your stock flasher relay if your OEM relay is not replaceable.

We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

The videos in this playlist below are a collection of user-submitted and original videos related to our LED Flasher Relays.

The Custom LED ELFR-1-H Plug-And-Play Electronic LED Flasher Relay comes with detailed installation instructions.

Installation of this product requires that you identify and remove the OEM flasher relay on your motorcycle to install the ELFR-1-H in its place. If you are unfamiliar with the location of your OEM flasher relay, or electronics in general, please consult a qualified technician or your repair manual for additional information.

Installation of the ELFR-1-H is as follows:

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.

NOTE: In some rare instances, when there are NO incandescent loads on the blinker system (LEDs front and rear), additional actions or components may also be required to prevent a wide range of blinker problems. These problems are all associated with a lack of resistive load on an all-LED blinker system that was designed for incandescent lamps. Problems such as, but not limited to: the 4-way hazard blink problem (both sides blinking at the same time), the no-blink problem, and Integrated LED Tail Lights staying in "blinker mode" due to non-zero blinker voltages. Rest assured that Custom LED has the knowledge, experience, and expertise to tackle any issues that may arise on your motorcycle.

Remember, the Flasher Relay ONLY controls the speed of the blinkers on the motorcycle, and any other problems that arise are independent of the flasher relay, and are resolved separately as well.
