Motorcycle LED Flasher Relay Compatibility Guide

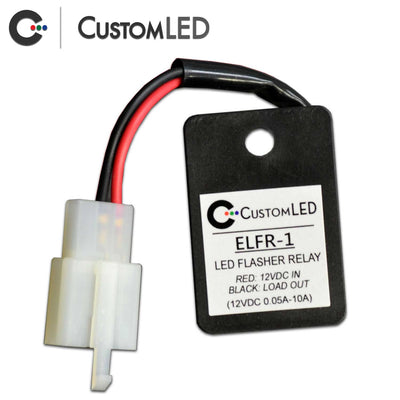

ELFR-1 Electronic LED Flasher Relay with OEM Connector ELFR-1 2-wire electronic LED flasher relay for compatible OEM connector and hard-wire applications. 312 compatible model-family entries ELFR-1-QD Electronic LED Flasher Relay with Quick Disconnects ELFR-1-QD Electronic LED flasher relay with quick-disconnect leads for compatible relay harnesses. 225 compatible model-family entries ELFR-1-H Electronic LED Flasher Relay 4-Pin Honda ELFR-1-H 4-pin Honda electronic LED flasher relay for compatible Honda applications. 12 compatible model-family entries ELFR-1-U Electronic LED Flasher Relay 7-Pin Suzuki ELFR-1-U 7-pin Suzuki electronic LED flasher relay for compatible Suzuki combination-relay applications. 29 compatible model-family entries
Aprilia 1
Compatible motorcycle Custom LED relay Important note OEM relay PN

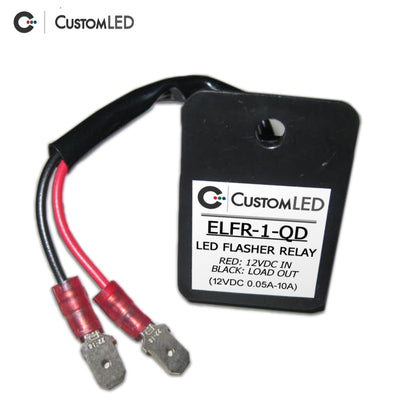

1995-1997 RS250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 AP8127286 / Guilera 01 2320B / 8127286
BMW 6
Compatible motorcycle Custom LED relay Important note OEM relay PN
2003-2005 F 650 CS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
2001-2008 F 650 GS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
2001-2007 F 650 GS Dakar ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
2009-2010 G 450 X ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
2009-2015 G 650 GS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
2012-2014 G 650 GS Sertão ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 61317650999 / 61 31 7 650 999
CFMoto 20
Compatible motorcycle Custom LED relay Important note OEM relay PN
CFORCE 500 SWB ELFR-1 — 9010-150340
CFORCE 500-A LWB/2007-2008 ELFR-1 — 9010-150340
CFORCE 500 CF500-2 ELFR-1 — 9010-150340
CFORCE 500 CF500-2A ELFR-1 — 9010-150340
CFORCE 600 LWB ELFR-1 — 9010-150340
UFORCE 600 CF600-5 ELFR-1 — 9010-150340
X5 / CFORCE 500 LWB ELFR-1 — 9010-150340
X5 / CFORCE 500 SWB ELFR-1 — 9010-150340
X6 / CFORCE 600 LWB ELFR-1 — 9010-150340
X6 / CFORCE 600 SWB ELFR-1 — 9010-150340
UFORCE 500 CARB ELFR-1 — 9010-150340
2022-2025 300NK ELFR-1 — 6KNV-161000-6400
2022-2024 300SS ELFR-1 — 2022-2023: 6KNV-161000-8300; 2024: 6KNV-161000-6400
2024-2025 450NK ELFR-1 — 6KNV-161000-8300
2025 IBEX 450 ELFR-1 — 6KNV-161000-8300
2022-2023 650 ADVentura ELFR-1 — 6KNV-161000-8300
2022-2023 650NK ELFR-1 — 6KNV-161000-8300
2022-2023 Papio 125 ELFR-1 — 6KNV-161000-8300
2024 Papio CL ELFR-1 — 6KNV-161000-6400
2024 Papio SS 125 ELFR-1 — 6KNV-161000-6400
Ducati 32
Compatible motorcycle Custom LED relay Important note OEM relay PN
2001-2002 MH900E ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2001-2003 Monster S4 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2003-2005 Monster 1000 / 1000 S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2006-2008 Monster S2R 1000 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2009-2013 Monster 1100 / 1100 S / EVO ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2003-2005 ST4S / ST4S ABS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2004-2007 ST3 / ST3S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2003-2006 Multistrada 1000 / 1000 S DS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2007-2009 Multistrada 1100 / 1100 S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2008-2012 Hypermotard 1100 / S / EVO ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2007-2010 SportClassic GT1000 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2006-2009 SportClassic Sport 1000 / Sport 1000 S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2006 Paul Smart 1000 LE ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2003-2006 Supersport 1000 / SS1000DS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2001-2002 Supersport 750 SS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2001-2002 Supersport 900 SS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
2002-2004 Superbike 998 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 53840061A / 538.4.006.1A
1995-1997; 2000-2003 Monster 400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1993-2001 Monster 600 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1996-2001 Monster 750 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1994-2001 Monster 900 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1997-2003 Sporttouring ST2 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1999-2003 Sporttouring ST4 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1995-2003 Superbike 748 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1992 Superbike 851 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1993-1995 Superbike 888 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1994-1998 Superbike 916 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1999-2001 Superbike 996 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1993-1997 Supersport 400 SS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1997 Supersport 600 SS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1997; 1999-2000 Supersport 750 SS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
1991-2000 Supersport 900 SS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 53840051A / 538.4.005.1A / 036138350 / 400520254
Genuine 4
Compatible motorcycle Custom LED relay Important note OEM relay PN
Hooligan ELFR-1 — AF5860010000
Buddy Kick ELFR-1 — AF5860010000
Rattler 50 ELFR-1 — AF5860010000
Roughhouse 50 Sport ELFR-1 — AF5860010000 / AF5860000000
Harley-Davidson 1
Compatible motorcycle Custom LED relay Important note OEM relay PN
Street 500 XG500 / Street 750 XG750 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 early Street XG 71400089; later Street XG 71400123. Both map to ELFR-1-QD.
Honda 154
Compatible motorcycle Custom LED relay Important note OEM relay PN
Navi ELFR-1 — 38301-KTF-671
DAX125 / ST125 ELFR-1 — 38301-KZZ-J01
Monkey ELFR-1 — 38301-KTF-671; 38301-KZZ-J01
2019-2024 Super Cub C125 ELFR-1 — 38301-KZZ-J01
Trail125 ELFR-1 — 38301-KZZ-J01
ADV150 ELFR-1 — 38301-KZZ-J01
2019-2022 PCX150 / WW150 / ABS ELFR-1 — 38301-KZZ-J01
ADV160 ELFR-1 — 38301-KZZ-J01
2023-2024 PCX160 / WW160 / ABS ELFR-1 — 38301-KZZ-J01
CRF250 Rally / ABS ELFR-1 — 38301-KYJ-641
CRF250L / ABS ELFR-1 — 38301-KYJ-641
NSS250 Reflex / ABS ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
PS250 Big Ruckus ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
VTR250 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CB300R / ABS ELFR-1 — 38301-KZZ-J01
2021-2025 CRF300 Rally / ABS ELFR-1 — 38301-KYJ-641; 38301-KZZ-J01
2021-2025 CRF300L / ABS ELFR-1 — 38301-KYJ-641; 38301-KZZ-J01
Forza 300 / NSS300 / ABS ELFR-1 — 38301-KTF-671
2020-2026 Rebel 300 / ABS ELFR-1 — 38301-KZZ-J01
CB-1 / CB400F ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
CB450SC Nighthawk 450 ELFR-1 — 1985: 38301-MF8-771; 1986: 38301-KK9-951/952
CRF450L / RL ELFR-1 — 38301-KZZ-J01
Rebel 450 / CMX450 ELFR-1 — 38301-MF8-773; 38301-MG9-681
2019-2023 CB500F / FA ELFR-1 — 38301-KZZ-J01
2019-2023 CB500X / XA ELFR-1 — 38301-KZZ-J01
2019-2023 CBR500R / RA ELFR-1 — 38301-KZZ-J01
CL500 ELFR-1 — 38301-KZZ-J01
2020-2026 Rebel 500 / ABS ELFR-1 — 38301-KZZ-J01
Shadow 500 ELFR-1 — 38301-MF5-771
V30 Magna / VF500C ELFR-1 — 38301-MF8-771
VF500F Interceptor ELFR-1 — 38301-MF5-771
VT500FT Ascot ELFR-1 — 38301-MF8-771
2004 599 / CB600F ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F Hurricane ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F2 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F3 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F4 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F4i ELFR-1 — 38301-MBW-D21; 38301-MG9-672
2007-2026 CBR600RR / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672; 38301-KTF-671
2019-2023 CBR650R / ABS ELFR-1 — 38301-KZZ-J01
Shadow VLX / VLX Deluxe ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2019-2023 CB650R / ABS ELFR-1 — 38301-KZZ-J01
NT650 Hawk GT ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
Nighthawk 650 / CB650SC ELFR-1 — 38301-MB0-004; 38301-MF8-773; 38301-MG9-681
Magna VF700 ELFR-1 — 38301-MF8-773; 38301-MG9-681
Nighthawk S / CB700SC ELFR-1 — 38301-MB0-004; 38301-MF8-773; 38301-MG9-681
Shadow 700 ELFR-1 — 38301-MF5-771
VF700F Interceptor ELFR-1 — 38301-MF8-771
VF700S Sabre ELFR-1 — 38301-MF8-771
VFR700 Interceptor ELFR-1 — 38301-MF5-771
VT700 Shadow ELFR-1 — 38301-MF8-771
CB750 Nighthawk 750 ELFR-1 — 38301-MF8-771
Magna VF750 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2021-2024 NC750X / DCT ELFR-1 — 38301-KZZ-J01
RVF750R RC45 ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
Shadow ACE 750 / ACE Deluxe ELFR-1 — 38301-MF8-771
Shadow Aero / ABS ELFR-1 — 38301-MEG-000
Shadow Phantom ELFR-1 — 38301-MEG-000; 38301-KZZ-J01
Shadow RS ELFR-1 — 38301-MEG-000
Shadow Spirit 750 / ABS ELFR-1 — 38301-MF5-771; 38301-MEG-000
VF750F Interceptor ELFR-1 — 38301-MF8-771
VFR750 ELFR-1 — 38301-MF5-771
VFR750 Interceptor ELFR-1 — 38301-MF5-771
VFR750F ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VFR750R RC30 ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
PC800 Pacific Coast ELFR-1 — 38301-MF8-771; 38301-KK9-951/952
VFR800 Interceptor / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VFR800FI Interceptor ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VT800 Shadow ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
919 ELFR-1 — 38301-MBW-D21; 38301-MG9-672
CBR900RR ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR929RR / CBR929RE ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CB1000 ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
2011-2016; 2018-2019 CB1000R / CB1000RA ELFR-1 — 38301-MBW-D21; 38301-MG9-672; 38301-KZZ-J01
CBR1000F Hurricane ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2004-2016 CBR1000RR ELFR-1 — 38301-MBW-D21; 38301-MG9-672; 38301-MEG-000
CBR1100XX Blackbird ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2018-2019 CRF1000 Africa Twin / DCT ELFR-1 — 38301-KZZ-J01
RC51 ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VF1000F Interceptor ELFR-1 — 38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VF1000R ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
VTR1000F Super Hawk ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
1983 GL1100 Gold Wing / Aspencade / Interstate ELFR-1 — 38301-MB0-004; 38301-MG9-681
2021-2024 Rebel 1100 / DCT ELFR-1 — 38301-KZZ-J01
ST1100 / ABS-TCS ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
Shadow 1100 ELFR-1 — 38301-MF5-771
Shadow ACE 1100 ELFR-1 — 38301-MF5-771
Shadow ACE Tourer 1100 ELFR-1 — 38301-MF5-771
Shadow Aero 1100 ELFR-1 — 38301-MF5-771
Shadow Sabre 1100 ELFR-1 — 38301-MF5-771
Shadow Spirit 1100 ELFR-1 — 38301-MF5-771
V65 Magna / VF1100C ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
GL1200 Gold Wing / Aspencade / Interstate / Limited / SE-i ELFR-1 — 38301-MG9-672
2003-2010; 2012-2013 ST1300 / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
ST1300P ELFR-1 — 38301-MEG-000
VT1300 Fury / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VT1300 Interstate / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VT1300 Sabre / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VT1300 Stateline / ABS ELFR-1 — 38301-MBW-D21; 38301-MG9-672
VTX1300 S/C/R/T ELFR-1 — 38301-MBW-D21; 38301-MG9-672
GL1500C Valkyrie / Tourer / Interstate ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2002-2004 VTX1800 ELFR-1 — 38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681

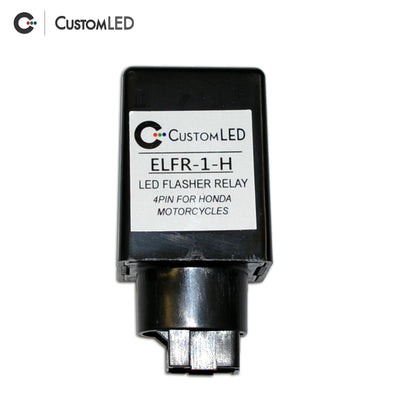

2017-2019 Rebel 300 ELFR-1-H — 38301-MJE-D01/D02
2013-2018 CB500F ELFR-1-H — 2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2013-2018 CB500X ELFR-1-H — 2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2013-2018 CBR500R ELFR-1-H — 2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2017-2019 Rebel 500 ELFR-1-H — 38301-MJE-D01/D02
CBR650F ELFR-1-H — 38301-MJE-D01/D02
CB650F ELFR-1-H — 38301-MJE-D01/D02
CTX700 / CTX700N / DCT ELFR-1-H — 38301-MEW-921
DN-01 / NSA700A ELFR-1-H — 38301-MEW-921
NC700X / DCT ELFR-1-H — 2012-2015: 38301-MEW-921; 2016-2017: 38301-MJE-D01/D02
2018-2020 NC750X / DCT ELFR-1-H — 38301-MJE-D01/D02
VFR1200F / DCT ELFR-1-H — 38301-MEW-921
XL100S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Trail 110 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Aero 125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
Elite 125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
NX125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
PCX125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
1977 Trail 125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
XL125S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Elite 150 / Deluxe ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
XL175 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Twinstar 185 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405 / Mitsuba FR-2208
XL185S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Twinstar 200 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405 / Mitsuba FR-2208; 38301-415-004 / Mitsuba FR-2105
CRF230L ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KG0-024
CRF230M ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KG0-024
Elite 250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Helix ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
NX250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
Nighthawk 250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
1996-2016 Rebel 250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KG0-024
XL250S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
XR250L ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
XL350 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
XL500S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
1993-2025 XR650L ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Express / Express II ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Aero 50 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Aero 80 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Elite 80 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743; 38301-GN3-672
Gyro ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743
Gyro S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Passport / C70 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
Spree ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-KJ6-743; 38301-GN3-672
Spree Special ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN3-672
Trail 70 / CT70 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405; 38301-KJ6-743
Trail 90 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
XL75 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
XL80S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-GF0-405
2013 PCX150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN0-603 / Mitsuba FR2237
Grom 125 / ABS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38301-GN0-603 / Mitsuba FR2237
Husqvarna 13
Compatible motorcycle Custom LED relay Important note OEM relay PN
2017-2019 FE 250 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2017-2019; 2023 FE 350 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2015-2016; 2020-2023 FE 350S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2018 Svartpilen 401 ELFR-1
Locking Tab modification applies when OEM relay PN is 76511030000.
 90511030000; 76511030000
2018-2019 Vitpilen 401 ELFR-1
Locking Tab modification applies when OEM relay PN is 76511030000.
 90511030000; 76511030000
2017-2019 FE 450 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2017-2019; 2023 FE 501 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2015-2016; 2020-2023 FE 501S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2016-2024 701 Enduro ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
701 Enduro LR ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2016-2024 701 Supermoto ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
2019 Svartpilen 701 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
Vitpilen 701 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 76511030000
Kawasaki 109
Compatible motorcycle Custom LED relay Important note OEM relay PN
KLX250 / S / SF ELFR-1 — 27002-1101; 27002-1097
1995-2007 Ninja 250R ELFR-1 — 27002-1092; 27002-1101; 27002-1097
Super Sherpa ELFR-1 — 27002-1101
2017-2023 Versys-X 300 / ABS ELFR-1 — 27002-0006
Ninja ZX-4R / ZX-4RR / ABS ELFR-1 — 27002-0068
Ninja 500 ELFR-1 — 27002-0006
1999-2009 Ninja 500R ELFR-1 — 27002-1101
Vulcan 500 LTD ELFR-1 — 27002-1101
2024-2025 Z500 ELFR-1 — 27002-0006
2009-2010 ER-6n ELFR-1 — 27002-1097; 27002-0006
Eliminator 600 ELFR-1 — 27002-1092
2008-2018 KLR650 ELFR-1 — 27002-1101
1995-2001 Ninja ZX-6 ELFR-1 — 27002-1092; 27002-1101; 27002-0006
1995-2006; 2008 Ninja ZX-6R ELFR-1 — 27002-1092; 27002-1101; 27002-0006
2013-2026 Ninja ZX-6R / ABS ELFR-1 — 27002-1097; 27002-0068
Ninja ZX-6RR ELFR-1 — 27002-1092; 27002-1101; 27002-0006
2017-2022 Z650 / ABS ELFR-1 — 27002-0006
2022-2023 Z650RS / ABS ELFR-1 — 27002-0006
2002-2008 ZZR600 ELFR-1 — 27002-1101
2012-2022 Ninja 650 / ABS ELFR-1 — 27002-0006
Ninja 650R ELFR-1 — 27002-0010; 27002-1097
2007-2021; 2025-2026 Versys 650 / ABS ELFR-1 — 27002-0006; 27002-1097; 27002-0068
Vulcan S / ABS / Cafe ELFR-1 — 27002-0006
W650 ELFR-1 — 27002-1101
Ninja ZX-7R / ZX-7RR ELFR-1 — 27002-1101; 27002-1092
2005-2006 Z750S ELFR-1 — 27002-1097
ZR-7 / ZR-7S ELFR-1 — 27002-1101
Vulcan 800 / Classic ELFR-1 — 27002-1101
2019-2023 W800 / W800 Cafe ELFR-1 — 27002-1101; 27002-0006
2016 Z800 ABS ELFR-1 — 27002-1097
1998-2003 ZX-9R ELFR-1 — 27002-1101
2006-2024 Vulcan 900 / Classic / Custom / LT ELFR-1 — 27002-1101
Z900 / ABS / SE ELFR-1 — 27002-1097; 27002-0068
2018-2026 Z900RS / Cafe / SE ELFR-1 — 27002-1097; 27002-0068
2011-2024 Ninja 1000 / 1000SX ELFR-1 — 27002-0006
2004-2020; 2022-2026 ZX-10R / ABS / RR ELFR-1 — 27002-1101; 27002-0006; 27002-1097; 27002-0068
2012-2021 Versys 1000 / LT / SE ELFR-1 — 27002-1097
2020-2023 Z H2 / Z H2 SE ELFR-1 — 27002-1097
2003-2006; 2014-2016 Z1000 / ABS ELFR-1 — 27002-1101; 27002-1097
ZZR1200 ELFR-1 — 27002-1101
GPZ1100 / ABS ELFR-1 — 27002-1092
Ninja 1100SX / SE ELFR-1
Verify connector / exact application before ordering.
 27002-0068
1995-2001 ZX-11 ELFR-1 — 27002-1092; 27002-1101
1995 ZR1100 ELFR-1 — 27002-1092; 27002-1101
ZRX1100 ELFR-1 — 27002-1092; 27002-1101
Ninja ZX-12R / ZX1200 ELFR-1 — 27002-1101
ZRX1200R ELFR-1 — 27002-1092; 27002-1101
Concours 14 / ABS ELFR-1 — 27002-1090
Ninja ZX-14 / ZX-14R / ABS ELFR-1 — 27002-1101
1996-1998 Vulcan 1500 Classic ELFR-1 — 27002-1092
1988-1993 Ninja 600R ELFR-1 — 27002-1063; 27002-1101
1988-1990 Ninja ZX-10 ELFR-1 — 27002-1063; 27002-1101
1983 Spectre 550 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1984-1986 GPz 550 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1984-1986 KL600 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1984 LTD 550 Shaft ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1985-1990 454LTD ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1985-2005 KLR250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1986-1990; 1992-1994 Ninja 250R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1987-2007 KLR650 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1987-1995 Vulcan 88 / VN-15SE ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1988-1989; 1991-1994 Eliminator 250 / 250HS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1990-1991 KL650 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1990-1996 Vulcan 500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1990-1993 ZR550 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053; 27002-1060
1991-1993 ZR750 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1993-1996 KLX650 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1994-1997 Ninja ZX-9R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1996-1999 Vulcan 1500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1996-1997 Vulcan 1500L ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1999-2001 KMX 125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
2001-2007; 2009 Eliminator 125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1053
1985 Vulcan 700 / LTD ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1985-1987 Ninja 600 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1986-2006 Concours 1000 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1986-2006 Vulcan 750 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1986-2003 Voyager XII ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1986-1987 ZL600 Eliminator ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1987-1998 EX500 / Ninja 500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1987 Ninja 600RX ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1987 ZL1000 Eliminator ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1990-1994 Ninja ZX-6 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1990-1994 Ninja ZX-11 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1992-1994 ZR1100 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
1994-1997 Ninja 600R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1060
2000-2002; 2005-2008 Vulcan 1500 Classic / Classic FI ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2001-2005 Vulcan 1500 Drifter ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2001-2004 Vulcan 1500 Nomad FI ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2002-2003 Vulcan 1500 Mean Streak ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2003-2008 Vulcan 1600 Classic ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2004-2008 Vulcan 1600 Mean Streak ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2005-2008 Vulcan 1600 Nomad ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2004-2009 Vulcan 2000 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2005-2006 Vulcan 2000 LTD / Limited ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2006-2009 Vulcan 2000 Classic ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2006-2010 Vulcan 2000 Classic LT ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2009-2012 Vulcan 1700 Classic ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2009-2010 Vulcan 1700 Classic LT ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2009-2014 Vulcan 1700 Nomad / ABS ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2009-2023 Vulcan 1700 Voyager / ABS ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2011-2023 Vulcan 1700 Vaquero / ABS ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1113
2018-2024 Ninja 400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0031
2019-2022 Z400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0031
2020-2023 KLX230; 2022-2023 KLX230 S/SE; 2023 KLX230SM ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0031
2021-2026 KLX300; 2021-2024 KLX300SM ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0031
2022-2026 KLR650 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0031
2008-2012 Ninja 250R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-1091
2013-2017 Ninja 300 / Ninja 300 ABS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 27002-0059
1999-2006 Vulcan 800 / Vulcan 1500 Classic / Nomad / Drifter ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 27002-1110; 27002-1111
KTM 34
Compatible motorcycle Custom LED relay Important note OEM relay PN
1998-2005 KTM 125 EGS / EXC / EXE / SX / SXS / Supermoto ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
1997-2005 KTM 200 Jackpinner / EGS / EXC / MXC / SX ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
1998-2005 KTM 250 EGS / EXC / EXC Racing / Six Days ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
1998-2005 KTM 300 EGS / EXC / Six Days ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2012-2014 KTM 350 EXC-F / EXCF ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 380 EGS / EXC ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
1998-2005 KTM 400 LC4 / SXC / TXC / Super Competition / EXC Racing / LS-E ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2003-2005; 2007-2011 KTM 450 EXC / EXC Racing / EXC-R / MXC / SX / SXS ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2012-2014 KTM 500 EXC ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 520 EXC Racing ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 525 EXC Racing / MXC / SX / Racing Supermoto ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 530 EXC / EXC-R ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
1998-1999; 2003-2004 KTM 540 SXC / SXS Racing ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 620 EGS-E Adventure / LC4 / SC / Super Competition / Supermoto / TXC ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 625 SXC / SMC / LC4 Super Competition ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 640 Adventure / Duke / Duke II / LC4 / LC4-E / Supermoto ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 660 Rallye / SMC / LC4 Rallye ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2009-2014 KTM 690 Duke ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2008; 2010-2013 KTM 690 Enduro / Enduro R ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2008; 2010 KTM 690 SMC ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2007-2008 KTM 690 Supermoto ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2003-2007 KTM 950 Adventure / Adventure S ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 950 Super Enduro R ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
KTM 950 Supermoto / Supermoto R ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2007-2008 KTM 990 Adventure ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2005-2008 KTM 990 Super Duke ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2010-2011 KTM 990 Supermoto / SMR / SMT ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.
 44611207200
2020-2022 200 Duke ELFR-1 — 90511030000
2017-2020 390 Duke ELFR-1 — 90511030000
2022-2024 RC 390 ELFR-1 — 90511030000
2020-2022; 2024 390 Adventure / 390 Adventure Spoke W ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.
 90511530000
2022 250 Duke ELFR-1 — 90511030000
2021-2023 390 Duke ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.
 90511530000
2015-2016; 2018-2020 RC 390 ELFR-1
Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.
 90511530000
Kymco 17
Compatible motorcycle Custom LED relay Important note OEM relay PN
Dink 50 ELFR-1 — 38300-LEA5-E0A
Sento 50 ELFR-1 — 38300-LEA5-E0A
Dink 125 ELFR-1 — 38300-LEA5-E0A
Movie 125 S ELFR-1 — 38300-LEA5-E0A
People GT / People GTi ELFR-1 — 38300-LCB4-900
Quannon 125 ELFR-1 — 38300-LEA5-E0A
XCiting 250 ELFR-1 — 38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
XCiting 300 ELFR-1 — 38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
MXU 400 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
Maxxer 400 ELFR-1 — 38300-LEA5-E0A
Maxxer 450i ELFR-1 — 38300-LEA5-E0A
UXV 450 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
MXU 465 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
MXU 500 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
UXV 500 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
XCiting 500 ELFR-1 — 38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
UXV 700 ELFR-1 — 38300-LEA5-E0A; 38300-LBC6-90A
Lance 4
Compatible motorcycle Custom LED relay Important note OEM relay PN
PCH 200i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-T40-0101 / SYM T40 ST-674
Cabo 200i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-T40-0101 / SYM T40 ST-674
Havana 200i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-35A-A00
Cali Classic 200i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-35A-A00
Piaggio 8
Compatible motorcycle Custom LED relay Important note OEM relay PN
2007-2008 Piaggio BV 250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2012-2015; 2017-2021 Piaggio BV 350 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2008 Piaggio BV 500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2007-2008 Piaggio BV Tourer 250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2008 Piaggio BV Tourer 500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2013-2018 Piaggio Fly 150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2017-2024 Piaggio Liberty 50 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2017-2024 Piaggio Liberty 150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
Royal Enfield 3
Compatible motorcycle Custom LED relay Important note OEM relay PN
Meteor 350 ELFR-1-QD — RAC00304/B; RAC00304/C
Hunter 350 ELFR-1-QD — RAC00304/B; RAC00304/C
Classic 350 Reborn ELFR-1-QD — RAC00203; RAC00203/C
Suzuki 55
Compatible motorcycle Custom LED relay Important note OEM relay PN
2025 GSX-S1000GT ELFR-1 — 38610-06LA1
2025 GSX-S1000GX ELFR-1 — 38610-06LA1
2022-2024 GSX-S1000 ELFR-1 — 38610-06LA0
2020; 2022-2024 Katana / GSX-S1000S ELFR-1 — 38610-06LA0
2019 Burgman 400 / AN400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-06F00; 38610-06F01
2014-2019 V-Strom 1000 / V-Strom 1000XT ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-06F00; 38610-06F01
2017-2019; 2022-2025 V-Strom 650 / V-Strom 650XT ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 2017-2018: 38610-06F00; 2019, 22-25: 38610-06F01
2022 V-Strom 1050 / DL1050R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-06F01
2017-2018; 2020-2025 GSX-R1000 / GSX-R1000R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-06F00; 38610-06F01
2017-2019; 2022-2026 SV650; 2019; 2022-2025 SV650X ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 2017-2018: 38610-06F00; 2019, 22-26: 38610-06F01
2019; 2025 GSX250R ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-06F00; 38610-06F01
1993-1998 GSX-R1100W ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1996-2009; 2011; 2013-2019; 2022-2026 DR650SE / DR650SEL ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1996-2019: 38610-26E00; 2022-2026: 38610-26E01
1996-1999 Bandit 600 / GSF600S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1997-2000 Bandit 1200 / GSF1200S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1997-2002 GS500 / GS500E ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1996-1999 GSX-R750X ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1996-2019 Savage 650 / Boulevard S40 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1996-2009 Intruder 1400 / VS1400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1998-2009 Intruder 800 / VS800 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1997-2001 TL1000S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-26E00
1990-1995 DR250SES ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-31X50
1990-1999 DR350 / DR350SE ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-31X50
1991-1997 GN125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-31X50
1994-1996 DR125SE ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-31X50
1996-2009; 2013; 2015-2019 DR200SE / DR200S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38610-31X50

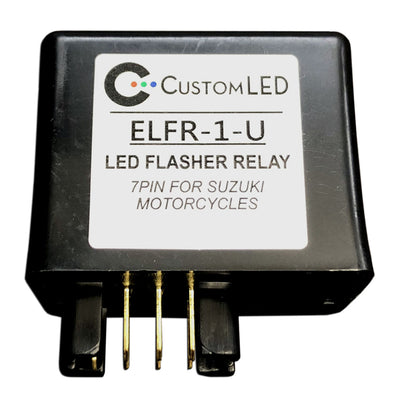

1999-2010 Marauder GZ250 ELFR-1-U — 1999-2001: 38610-03F00; 2002-2010: 38610-12FA0
2009-2019 TU250X ELFR-1-U — 38610-03F00; 38610-03F01
2003-2009 Burgman 400 / AN400 ELFR-1-U — 38610-03F00; 38610-03F01
2000-2022 DR-Z400S ELFR-1-U — 38610-03F00; 38610-03F01
2005-2024 DR-Z400SM ELFR-1-U — 38610-03F00; 38610-03F01
2000-2003 Bandit 600 / GSF600S ELFR-1-U — 38610-03F00; 38610-03F01
1997-2003; 2006-2009; 2019; 2021-2026 GSX-R600 ELFR-1-U — 1997-2003, 2006-2009: 38610-03F00; 2019, 2021-2026: 38610-03F01
1998-2006 Katana 600 / GSX600F ELFR-1-U — 38610-03F00; 38610-03F01
2003-2017 Burgman 650 / AN650/A ELFR-1-U — 38610-03F00; 38610-10G00; 38610-03F01
2008-2009 Katana 650 / GSX650F ELFR-1-U — 38610-03F00
2009; 2015 SFV650 Gladius ELFR-1-U — 38610-03F00; 38610-03F01
1999-2008 SV650 / SV650S ELFR-1-U — 38610-03F00; 38610-03F01
2004-2016 V-Strom 650 / DL650/A ELFR-1-U — 38610-03F00; 38610-03F01
2000-2002; 2006-2008; 2019; 2021-2026 GSX-R750 ELFR-1-U — 2000-2002, 2006-2008: 38610-03F00; 2019, 2021-2026: 38610-03F01
2015-2023 GSX-S750 ELFR-1-U — 38610-03F01
1998-2006 Katana 750 / GSX750F ELFR-1-U — 38610-03F00; 38610-03F01
2001-2025 Boulevard C50 / VL800 ELFR-1-U — 38610-03F00; 38610-03F01
1997-2019 Marauder VZ800 / Boulevard M50 ELFR-1-U — 38610-03F00; 38610-03F01; cross-product note retained for 38610-26E00 overlap
2001-2016 GSX-R1000 ELFR-1-U — 38610-03F00; 38610-03F01
2003-2007 SV1000S ELFR-1-U — 38610-03F00; 38610-03F01
2002-2012 V-Strom 1000 / DL1000 ELFR-1-U — 2002, 2004-2006: 38610-12FA1; 2002-2012: 38610-03F01
2001-2005 Bandit 1200 / GSF1200/S ELFR-1-U — 38610-03F00; 38610-03F01
2007-2009 Bandit 1250 / GSF1250SA ELFR-1-U — 38610-03F00
2008-2009 B-King / GSX1300BK/A ELFR-1-U — 38610-03F00; 38610-03F01
1999-2019 Hayabusa / GSX1300R ELFR-1-U — 38610-03F00; 38610-03F01
2009-2019 Boulevard M90 ELFR-1-U — 38610-03F00; 38610-03F01
1998-2019 VL1500 Intruder LC / Boulevard C90 ELFR-1-U — 38610-03F00; 38610-03F01
Boulevard C109R ELFR-1-U — 38610-03F00
2006-2025 Boulevard M109R / VZR1800 ELFR-1-U — 38610-03F00; 38610-03F01
SYM 1
Compatible motorcycle Custom LED relay Important note OEM relay PN
Fiddle III 200i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 38300-T40-010 / Mitsuba T40 675; 38300-T40-0101 / Mitsuba T40 ST-674
Triumph 23
Compatible motorcycle Custom LED relay Important note OEM relay PN
2009-2016 Bonneville / Bonneville T100 / SE EFI ELFR-1
Verify connector / exact application before ordering.
 T2506000
2006-2017 Daytona 675 / 675R / SE ELFR-1 — T2506000
2009-2017 Scrambler EFI ELFR-1
Verify connector / exact application before ordering.
 T2506000
2008-2016 Street Triple 675 / 675R / 675RX ELFR-1 — T2506000
2017-2023 Street Triple 765 / 765S / 765R / 765RS ELFR-1 — T2506000
2009-2016 Thruxton EFI ELFR-1
Verify connector / exact application before ordering.
 T2506000
2011-2015 Tiger 800 / 800 XC ELFR-1 — T2506000
2007-2012 Tiger 1050 / SE ELFR-1 — T2506000
1997-2006 Daytona T595 / 955i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2008-2020 America EFI ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2001-2022 Bonneville / Bonneville T100 / SE ELFR-1-QD
Verify connector / exact application before ordering.
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2002-2005 Daytona 600 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2002-2005 Daytona 650 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2006-2022 Rocket III Classic / Roadster ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2006-2022 Scrambler ELFR-1-QD
Verify connector / exact application before ordering.
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2002-2005 Speed Four ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2000-2003 TT600 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
1994-1996 Speed Triple 885 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
1999-2004 Sprint RS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2004-2020 Thruxton ELFR-1-QD
Verify connector / exact application before ordering.
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
1993-1998 Tiger 885i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2001-2007 Tiger 955i ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
2007-2020 Speedmaster EFI ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 T2500531
Vespa 15
Compatible motorcycle Custom LED relay Important note OEM relay PN
2013-2014; 2016-2019; 2021; 2023 Vespa 946 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2001-2005 Vespa ET2 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2001-2005 Vespa ET4 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2020-2021 Vespa Elettrica 4 KW ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2009-2022 Vespa GTS300 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2007-2008 Vespa GTV250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2011-2017; 2019 Vespa GTV300 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2007 Vespa Granturismo 60 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2009-2013 Vespa LX150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2011-2015 Vespa LXV150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2015-2023; 2025-2026 Vespa Primavera 50 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2015-2023; 2025-2026 Vespa Primavera 150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2009-2013 Vespa S150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2015-2022 Vespa Sprint 50 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
2015-2023 Vespa Sprint 150 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 1D002376 / 1D004175R / 638755 / 640289
Victory 2
Compatible motorcycle Custom LED relay Important note OEM relay PN
2004 Victory Kingpin ELFR-1 — 2410338 / FE218BH
2003-2004 Victory Vegas ELFR-1 — 2410338 / FE218BH
Yamaha 69
Compatible motorcycle Custom LED relay Important note OEM relay PN
2015-2020 SMAX ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
2001-2026 TW200 ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
1992-2007 XT225 / Serow ELFR-1 — 4BE-83350-00-00; 4VR-83350-00-00; 4VR-83350-02-00
2006-2008 Morphous 250 ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
1995-2026 V Star 250 / Virago 250 / XV250 ELFR-1 — 3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-02-00; 3GM-83350-03-00
2008-2020 WR250R ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2008-2011 WR250X ELFR-1 — 4MY-83350-01-00; 4MY-83350-03-00
2008-2025 XT250 ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2018-2022 XMAX ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2005-2015 Majesty 400 ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
2015-2018 SR400 ELFR-1 — 3HT-83350-00-00; 3HT-83350-01-00
TMAX ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
FZ6 ELFR-1 — 4VR-83350-00-00; 4VR-83350-02-00
FZ6R ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
Seca II XJ600S ELFR-1 — 3YA-83350-00-00; 3YA-83350-10-00; 3GM-83350-01-00; 3GM-83350-03-00
1999-2016 YZF-R6 / R6S ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
YZF600R ELFR-1 — 3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-03-00; 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2021-2023 Tenere 700 ELFR-1 — 5C4-83350-01-00; 5C4-83350-02-00
2018-2021 XSR700 ELFR-1 — 5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
1994; 1996-1998 YZF750 / YZF750R ELFR-1 — 3YA-83350-00-00; 3YA-83350-10-00; 3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-03-00
FZ8 ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
TDM850 ELFR-1 — 3YA-83350-00-00; 3YA-83350-10-00
FJ-09 / Tracer 900 / GT ELFR-1 — 4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
2014-2020 FZ-09 / MT-09 ELFR-1 — 4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
2016-2021 XSR900 ELFR-1 — 4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
SCR950 ELFR-1 — 5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2003-2012 FJR1300 / A / AE / ABS ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
FZ1 ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00; 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
GTS1000 ELFR-1 — 3YA-83350-00-00; 3YA-83350-10-00
YZF1000R ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
1991-1993 FJ1200 ELFR-1 — 3YA-83350-00-00; 3YA-83350-10-00
Bolt C-Spec ELFR-1 — 5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2015-2020 FZ-07 / MT-07 / ABS ELFR-1 — 5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2012-2013 Super Tenere ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
VMAX ELFR-1 — 5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2015-2024 YZF-R3 / ABS ELFR-1 — 4VR-83350-00-00; 4VR-83350-02-00; 3HT-83350-00-00; 3HT-83350-01-00
1999 YZF-R7 ELFR-1 — 3GM-83350-01-00; 3GM-83350-03-00
1978-1980 DT100 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1978-1981 DT125 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1978-1981 DT175 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1978-1980 DT250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1988-1990 Route 66 / XV250 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
1980-1983 XT250 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1978 DT400 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
1978-1981 XT500 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
FZR600 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
1989-1990 Radian ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
V Star 650 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00/01
1989-1990 FZR1000 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
V Star 1100 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 5EL-83350-00/01
1989-1990 FJ1200 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
1990-2007 V-Max 1200 ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 2UJ-83350-00-00; 2UJ-83350-01-00
Roadliner ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 1D7-83350-00-00; 1D7-83350-01-00
2006-2014 Stratoliner ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 1D7-83350-00-00; 1D7-83350-01-00
2008-2014 Raider / Raider S; 2012-2013 Raider SCL ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 1D7-83350-00-00; 1D7-83350-01-00
2007-2010 C3 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3B3-83350-00-00
DT50 Enduro ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
Jog ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 29G-83350-20-00
QT50 / Yamahopper ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3BK-83350-00-00
Razz ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 29G-83350-20-00
2001-2005 Vino / Vino Classic ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 29G-83350-20-00
1989-1990 Zuma 50 ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 29G-83350-20-00
2012-2019 Zuma 50F / 50FX / 50X ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 3B3-83350-00-00
1999-2007 Road Star / Road Star Silverado / Road Star Midnight ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 4WM-83350-00-00; 5VN-83350-00-00
1998-2014 YZF-R1 ELFR-1 — 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00; 4C8-83350-10-00
Road Star Warrior / Midnight Warrior ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 5PX-83350-00-00
Stryker ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 3D8-83350-00-00
2007-2017 V Star 1300 / V Star 1300 Tourer / V Star 1300 Deluxe ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 3D8-83350-00-00
1997-2013 Royal Star / Royal Star Tour Deluxe / Royal Star Venture ELFR-1-QD
Self-canceling feature of OEM relay will be lost. View installation guidance
 4NK-83350-00-00
Zero Motorcycles 7
Compatible motorcycle Custom LED relay Important note OEM relay PN
DS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
FX ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
DSR ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
FXE ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
FXS ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
S ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
SR ELFR-1-QD
L/B wiring guidance
If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.
 45-08281; Guilera 013341
Specialty option: ELFR-P is the programmable version of the ELFR-1 with 10 selectable flash patterns. It fits applications that use ELFR-1 and may have limited availability. View ELFR-P

How to use this guide

  • Search by motorcycle make, model, year, or OEM flasher relay part number.
  • If your motorcycle is listed, choose the Custom LED relay shown in the results. Click the relay name to view the product page.
  • The OEM relay PN column helps confirm the original relay part number or relay body marking when that information is available.
  • Important notes call out fitment details such as connector checks, required locking-tab modification, L/B wiring guidance, or loss of the OEM self-canceling feature.

Compatibility data © Custom LED LLC. This guide is provided to help customers select the correct Custom LED relay. Do not reproduce or republish this compatibility data without permission.
