1994-2002 Ducati 916/995/996/998/748 Integrated LED Tail Light Retrofit Kit

* The Custom LED Ducati Integrated LED Tail is compatible with all Ducati Motorcycles that have the stock tail light as shown here.

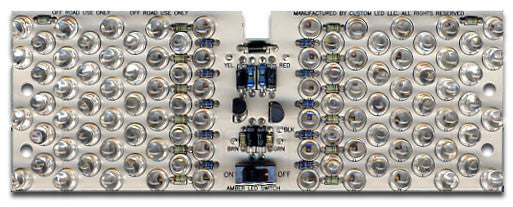

This is an integrated LED tail light retrofit for all Ducati Motorcycles fitted with the tail light shown below.  The incandescent bulbs and reflector assembly of the stock tail light are replaced with a Custom LED circuit board containing 60 Ultra Bright Red LEDs and 40 Ultra Bright Yellow LEDs.

Just as on the other Custom LED models, the system is designed so that the red LEDs turn off (on one side) when the yellow comes on so that the turn indication is a pure yellow light.  The unit automatically flashes between the red and yellow on the side you're turning!  The Yellow LEDs are slightly offset as well, creating a dramatic attention grabbing effect.

The Custom LED Ducati Integrated LED Tail is designed to work with either the stock red-tinted lens, OR any after market clear lens.  Our ingenious design allows the user to program the LED circuit board for use with either lens.  For the red-tinted lens applications, the running light, brake light and turn signals will be handled entirely by the 60 Ultra Bright Red LEDs.  For the clear lens applications, the tail light will function as shown in the video below.

The engineering is solid and dependable, the looks are unbeatable, and the brightness is incredible!  Don't waste your time with half hearted solutions, do it the right way from the start, with Custom LED.

If you would like to find out more information as to Custom LED's design concepts for the Integrated LED Tail Lights, and the purpose of them, read this introduction to Custom LED's Integrated LED Tail Lights.

• 60 Ultra Bright Red LEDs for running and brake lights.
• 40 Ultra Bright Yellow LEDs for turn signals.
• Custom LED ColorChange Technology on-board.
• Detailed step by step instructions with illustrations for a simple install.
• Smart color matched wires matches motorcycle wires for easy wiring.
• Only 2 wires to hook up outside of tail light housing.
• All electrical connectors and hardware provided with kit.
• 1-year Warranty & Satisfaction Guarantee!
• MADE IN THE USA!
• NOT DOT approved.

The Custom LED 1994-2002 Ducati 916/995/996/998/748 Integrated LED Tail Light retrofit kit must be installed into the OEM tail light.

There may be additional accessories required to correct blinker problems on your motorcycle if you remove your OEM turn signals. These accessories can not be built into the tail light, and are generally optional and specific to different customers needs, so they are sold separately. Please see the recommended accessories in the tab above, and read about the general issues and solutions in our Frequent Questions Page. If you have any questions, please do not hesitate to contact us.

Installation of this product requires that you remove the OEM tail light from the motorcycle for the retrofit kit installation.  Please consult a qualified technician or your repair manual for the proper procedure to remove the OEM tail light.

Once the OEM tail light is removed from the motorcycle, installation of the Custom LED 1994-2002 Ducati 916/995/996/998/748 Integrated LED Tail Light is detailed in the instructions below.
